Eibenstock PDM 85-3 X pipe core drill with 1700W power | 12–60mm core capacity | 3-speed operation | 100–500mm pipe range | 13mm thickness.

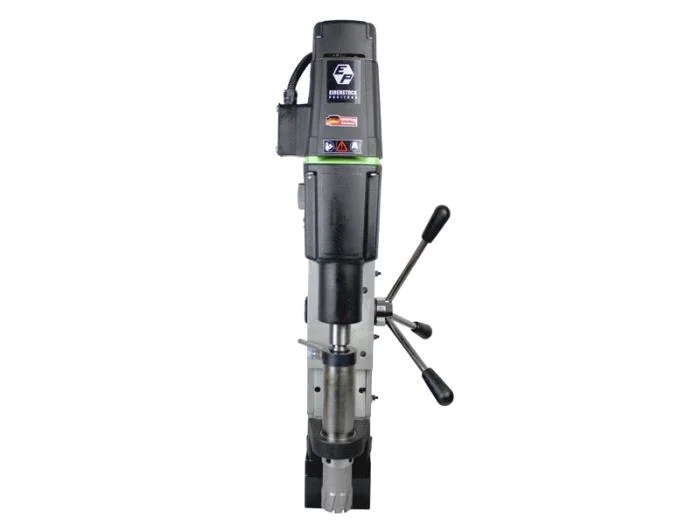

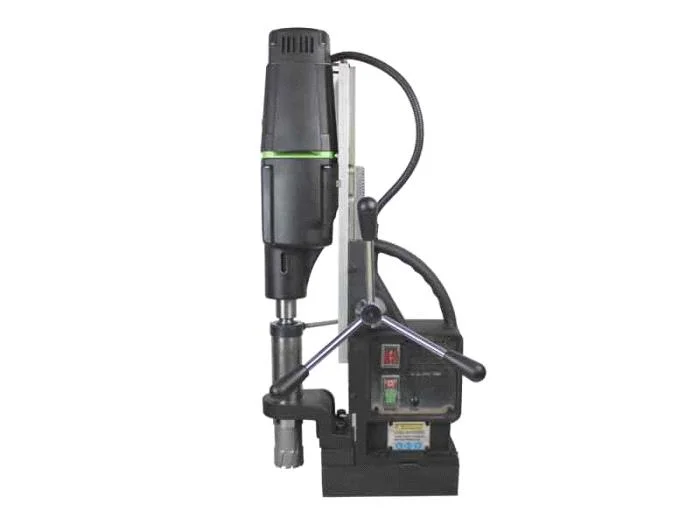

The Eibenstock PDM 85-3 X is a powerful professional core drilling machine designed specifically for demanding pipe drilling and industrial fabrication applications. Equipped with a 1700W motor and operating on 220–240V, it delivers reliable drilling performance for large and medium-diameter holes in pipes and structural sections. The machine offers a core cutting capacity of 12 to 60 mm and features three rated speed settings of 110, 190 and 280 RPM. This 3-speed configuration provides flexibility for selecting the appropriate drilling speed according to the application and material. The PDM 85-3 X is designed for versatile pipe applications and accommodates round pipes from 100 mm to 500 mm in size, with a maximum pipe thickness of 13 mm. It can also be used on square pipes with a minimum square pipe size of 90 mm, making it suitable for a wide range of structural and fabrication work. With a robust 28 kg construction, the machine offers stability during demanding drilling operations while remaining suitable for professional workshop and onsite applications. Key Features Brand: Eibenstock Model: PDM 85-3 X Rated Voltage: 220–240 V Power Input: 1700 W Rated Speed: 110 / 190 / 280 RPM Core Cutting Capacity: 12–60 mm Minimum Round Pipe Size: 100 mm Maximum Round Pipe Size: 500 mm Maximum Pipe Thickness: 13 mm Minimum Square Pipe Size: 90 mm Weight: 28 kg 3-Speed Operation: Provides flexibility for different drilling applications Industrial Pipe Drilling Design: Suitable for round and square sections Applications The Eibenstock PDM 85-3 X is suitable for pipe fabrication, steel construction, structural steelwork, metalworking, industrial maintenance, construction and onsite installation. Its broad pipe-size compatibility and 60 mm maximum core cutting capacity make it suitable for demanding professional drilling tasks.
