Eibenstock KDS 85-3 | Magnetic Core Drill Machine with 1800W power | 85mm core cutting capacity |75mm depth | 3-speed operation | MT3 arbor

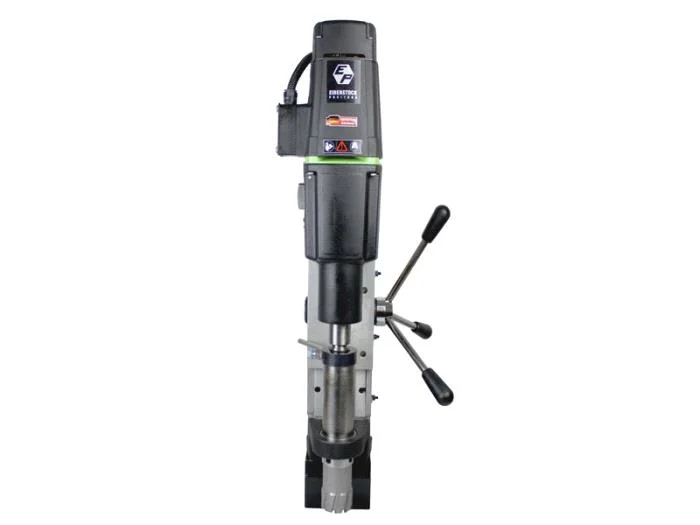

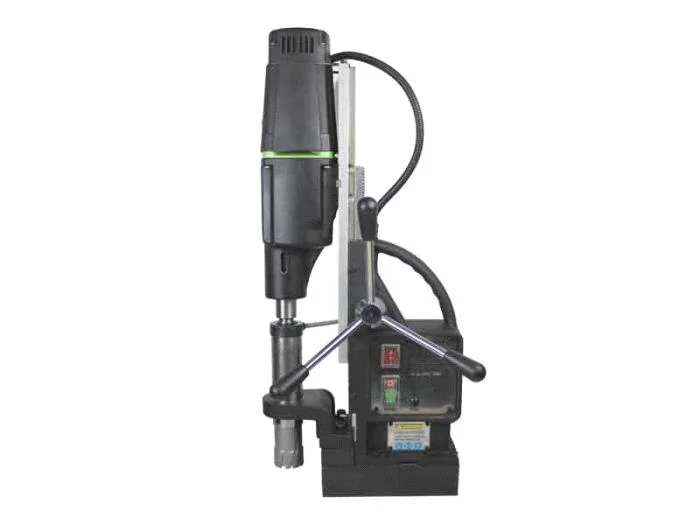

The Eibenstock KDS 85-3 is a high-performance magnetic core drill machine designed for demanding industrial core drilling applications. Powered by an 1800W motor, it delivers strong and reliable drilling performance with a maximum core cutting capacity of 85 mm and a maximum core cutting depth of 75 mm. The machine features a 3-speed gearbox with no-load speeds of 170, 320 and 470 min⁻¹, while the rated speeds are 110, 190 and 280 min⁻¹. This multi-speed configuration allows users to select the appropriate drilling speed for different materials and core drilling requirements. The KDS 85-3 supports a 32 mm Weldon and 19 mm direct arbor connection, along with an MT3 Morse taper, providing compatibility with suitable drilling accessories and tooling. With a robust 29 kg construction, it is well suited for heavy-duty industrial and workshop applications where stability and dependable drilling performance are required. Key Features Brand: Eibenstock Model: KDS 85-3 Rated Voltage: 220–240 V Power Input: 1800 W Maximum Core Cutting Capacity: 85 mm Maximum Core Cutting Depth: 75 mm No-Load Speed: 170 / 320 / 470 min⁻¹ Rated Speed: 110 / 190 / 280 min⁻¹ Direct Arbor: 32 mm Weldon & 19 mm Morse Taper: MT3 Weight: 29 kg Applications The Eibenstock KDS 85-3 is suitable for heavy-duty core drilling, steel fabrication, structural steelwork, industrial maintenance, workshop drilling and construction-related metal drilling applications. Its high power output, large core capacity and 3-speed operation make it suitable for professional users requiring consistent drilling performance.
