Eibenstock KBM50P.1 | Magnetic Core Drill with 1200W power | 12–50mm core capacity | 50mm depth | 19mm Weldon spindle | M20 tapping and torque control.

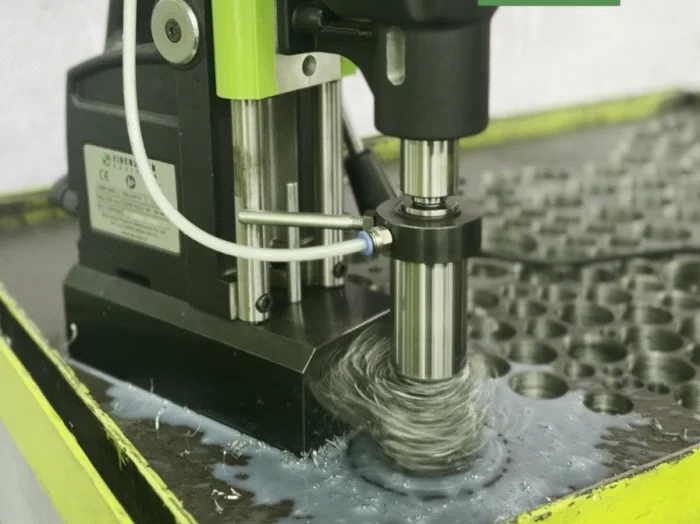

The Eibenstock KBM50P.1 Magnetic Core Drill Machine is a powerful and versatile industrial drilling solution designed for professional metalworking, steel fabrication, installation and maintenance applications. With a 1200 W power input, this magnetic core drill delivers reliable performance for demanding drilling operations while supporting multiple drilling and tapping applications. The machine provides a 12 to 50 mm core cutting capacity with a 50 mm maximum core cutting depth, making it suitable for producing accurate holes in steel plates and metal structures. It features a 19 mm Weldon spindle connection, allowing the use of compatible Weldon-shank annular cutters. For added versatility, the KBM50P.1 supports twist drilling up to 22 mm and M20 tapping. Its 100–450 RPM variable rated speed range allows the machine to accommodate different drilling requirements and applications. Advanced Protection Features The Eibenstock KBM50P.1 is equipped with Electro Torque Control to help manage torque during demanding drilling operations. Thermal Overload Protection provides additional protection against excessive heat during intensive use, helping support dependable operation and tool longevity. With a robust 18 kg construction and a 220–240 V rated voltage, this magnetic core drilling machine is suitable for professional workshop and onsite industrial applications. Technical Specifications Model Eibenstock KBM50P.1 Rated Voltage : 220–240 V Power Input :1200 W Core Cutting Capacity: 12–50 mm Core Cutting Depth :50 mm Rated Speed: 100–450 RPM Spindle Connection :19 mm Weldon Twist Drill Capacity :22 mm Tapping Capacity : M20 Electro Torque Control : Yes Thermal Overload Protection : Yes Weight :18 kg Applications The Eibenstock KBM50P.1 is suitable for steel plate drilling, structural steel fabrication, metalworking, machinery installation, industrial maintenance, construction and onsite production applications. Its combination of core drilling, twist drilling and M20 tapping capabilities makes it a versatile machine for professional metalworking requirements.
