Eibenstock KBM 130.1 |Magnetic Core Drilling Machine with 2300W power |up to 130mm core drilling capacity | M42 tapping | 4-speed operation

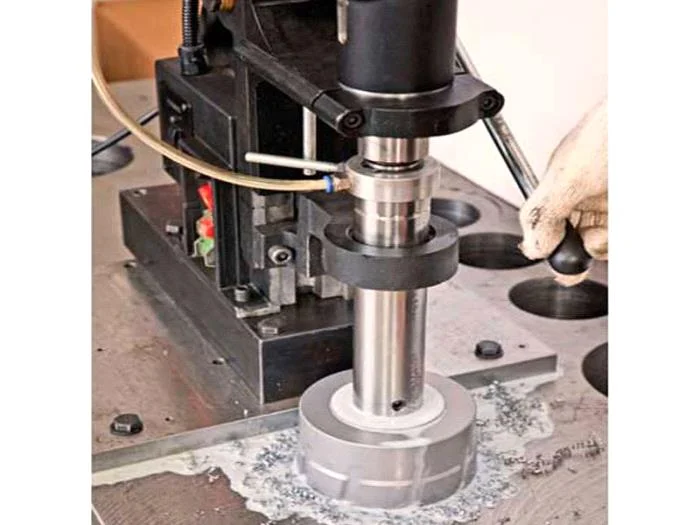

The Eibenstock KBM 130.1 is a heavy-duty magnetic core drilling machine designed for demanding industrial metalworking, core drilling, tapping, twist drilling and reaming applications. With a powerful 2300W motor and a robust 50 kg construction, it is engineered for high-performance drilling operations where precision, power and versatility are essential. The KBM 130.1 provides flexible core drilling capabilities with different core drill lengths. It supports 12–130 mm core drilling with a 30 mm short core drill, 12–100 mm with a 55 mm long core drill, and 20–120 mm with a 110 mm extra-long core drill. The maximum specified core cutting depth is 110 mm, making it suitable for a wide range of demanding drilling requirements. Versatile Metalworking Capabilities Beyond core drilling, the Eibenstock KBM 130.1 supports tapping up to M42, making it suitable for heavy-duty threaded-hole applications. Its twist drilling capacity reaches up to 45 mm, while reaming capacity is up to 50 mm. The machine is equipped with an MT4 Morse taper and a 32 mm Weldon direct arbor, providing compatibility with suitable drilling and cutting accessories. Safety and Protection Features For reliable operation during demanding industrial work, the KBM 130.1 incorporates electronic torque control and thermal overload protection. These features help manage the machine under high-load conditions and provide additional protection during intensive drilling operations. Key Features Power Input: 2300W Rated Voltage: 220–240V Core Drill Capacity with 30 mm Short Core Drill: 12–130 mm Core Drill Capacity with 55 mm Long Core Drill: 12–100 mm Core Drill Capacity with 110 mm Extra-Long Core Drill: 20–120 mm Maximum Core Cutting Depth: 110 mm Rated Speed: 30–85 / 50–135 / 130–390 / 210–620 RPM Tapping Capacity: Up to M42 Twist Drilling Capacity: Up to 45 mm Reaming Capacity: Up to 50 mm Morse Taper: MT4 Direct Arbor: 32 mm Weldon Electronic Torque Control: Yes Thermal Overload Protection: Yes Weight: 50 kg Applications The Eibenstock KBM 130.1 is suitable for heavy-duty steel fabrication, structural steelwork, industrial maintenance, metalworking, construction and installation applications. Its combination of large-diameter core drilling, tapping, twist drilling and reaming capabilities makes it a versatile solution for professional workshops and demanding jobsite operations.
