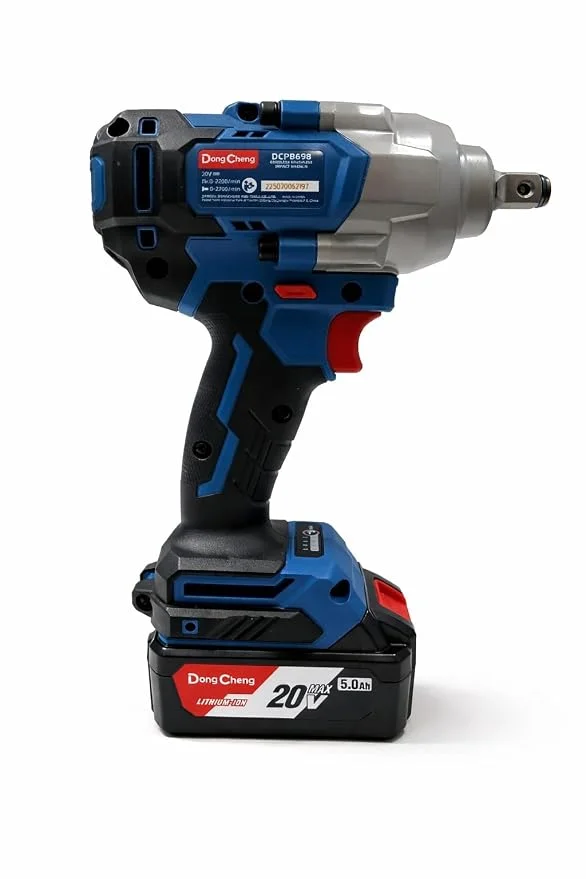

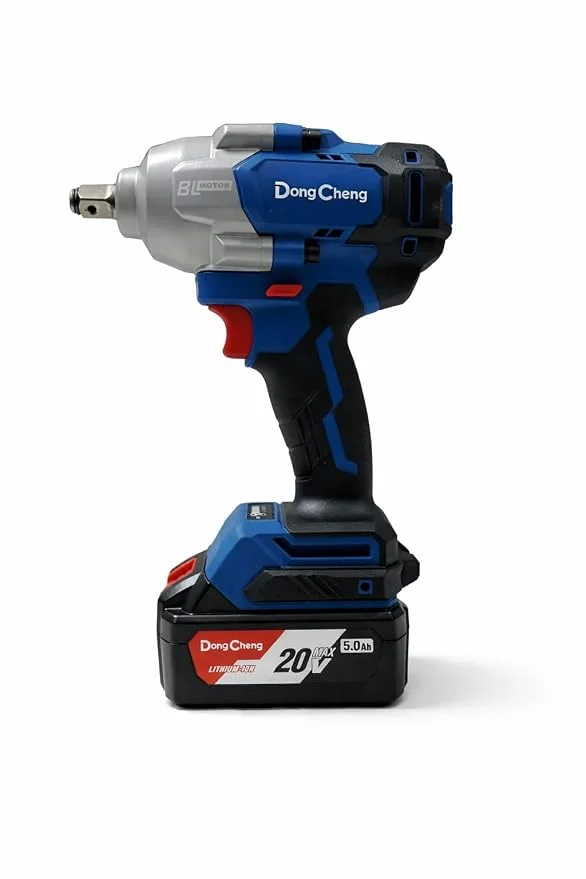

The Dongcheng 6517 DCPB698-FK Cordless Brushless Impact Wrench is a high-performance fastening tool designed for professional automotive, mechanical, construction and industrial applications. Powered by a 20V MAX platform with 5.0Ah × 2 batteries, it delivers up to 698Nm of torque and 910Nm of nut-busting torque for demanding fastening and loosening tasks.
Equipped with a 12.7mm (1/2-inch) square drive, the DCPB698-FK is suitable for standard bolt sizes from M10 to M24. Its 750W maximum power output provides strong performance for applications requiring high fastening forc
Technical Specifications
Brand :Dongcheng
Product Number: 6517
Model :DCPB698-FK
Battery :20V MAX / 5.0Ah × 2
Max. Power Output: 750W
Square Drive Size :12.7mm (1/2")
No-Load Speed – 1st Gear 500/min
No-Load Speed – 2nd Gear 1,200/min
No-Load Speed – 3rd Gear 1,900/min
No-Load Speed – 4th Gear 2,200/min
Impact Frequency – 1st Gear 1,000/min
Impact Frequency – 2nd Gear 1,700/min
Impact Frequency – 3rd Gear 2,400/min
Impact Frequency – 4th Gear 2,700/min
Torque Setting – 1st Gear 300Nm
Torque Setting – 2nd Gear 400Nm
Torque Setting – 3rd Gear 500Nm
Torque Setting – 4th Gear 698Nm
Max. Torque :698Nm
Nut-Busting Torque :910Nm
Standard Bolt Size :M10–M24
Net Weight :2.5kg
Features
1. Brushless motor: High efficiency,powerful and durable;
2. New optimize air duct design;
3. Compact body: Easy to carry and comfortable to hold;
4. 4-speed & torque adjustment: Meet different working requirements;
5. 698N.m Max torque: high efficiency, powerful and durable.
Accessories & Package
(Type FK)5.0Ahx2,4A Charger
Color Box Packing
Plastic Case Packing
