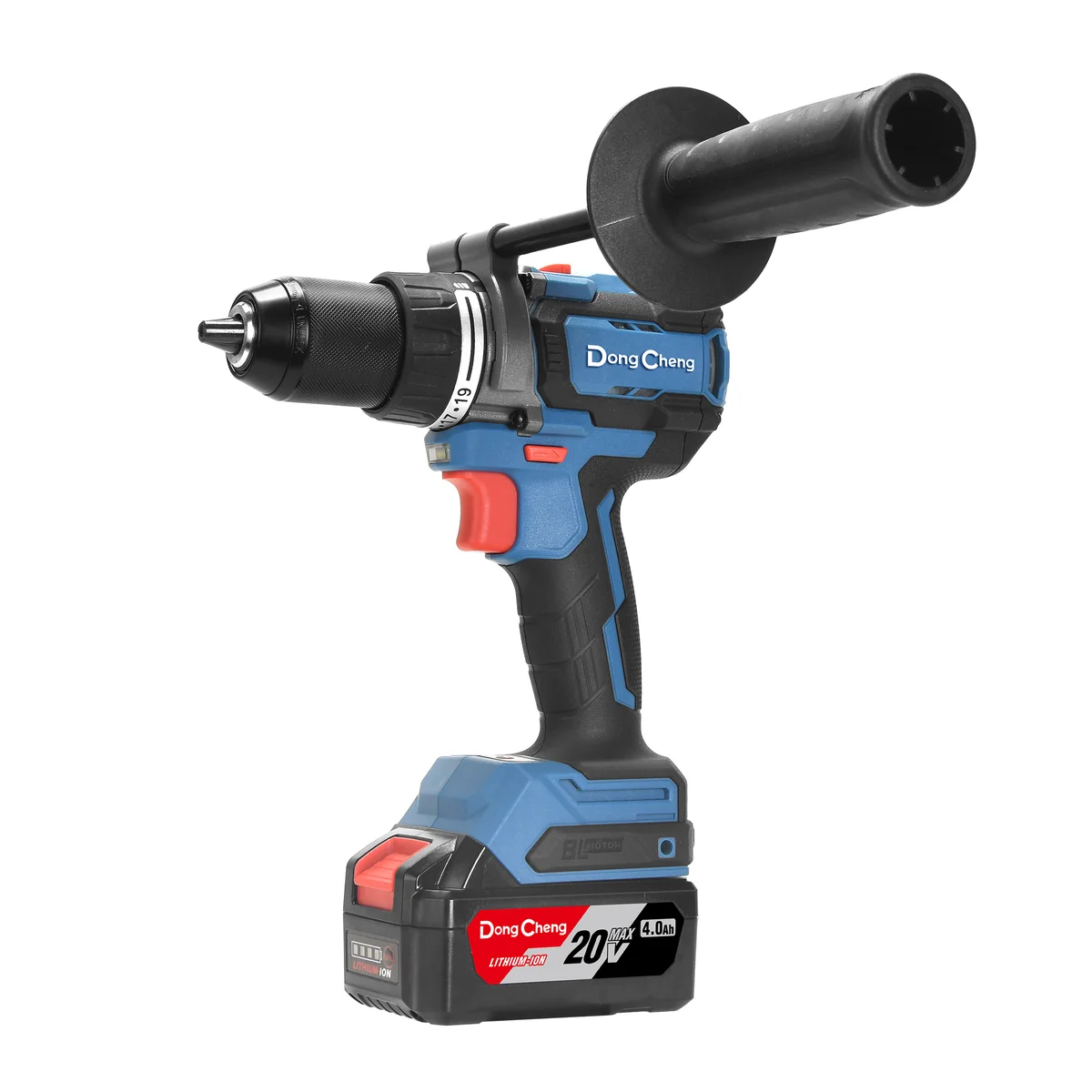

The 6520 Cordless Brushless Driver / Hammer Drill DCJZ2060 I - EM - 4A X 2 BATT is a powerful and versatile cordless drilling solution designed for professional construction, installation, workshop, and maintenance applications. Powered by a 20V MAX battery system with two 4.0Ah batteries, it provides convenient cordless operation and extended working capability.
The brushless motor delivers up to 1000W maximum power output and an impressive 160N.m maximum torque, making the DCJZ2060 suitable for demanding drilling and fastening applications. Its two-speed gearbox provides a no-load speed of 0–500 RPM in 1st gear and 0–2100 RPM in 2nd gear, allowing users to select the appropriate speed for different materials and tasks.
Key Features
Model: 6520 DCJZ2060
Product Type: Cordless Brushless Driver / Hammer Drill
Battery: 20V MAX / 4.0Ah × 2
Maximum Power Output: 1000W
Maximum Chucking Capacity: 13mm
No-Load Speed – 1st Gear: 0–500 RPM
No-Load Speed – 2nd Gear: 0–2100 RPM
Rated Impact Frequency: 0–33,600 impacts/min
Maximum Torque: 160N.m
Torque Setting: 19+2
Max. Drilling Diameter – Steel: Φ13mm
Max. Drilling Diameter – Brick Wall: Φ16mm
Max. Drilling Diameter – Wood: Φ65mm
Net Weight: 2.4kg
Applications
The 6520 DCJZ2060 Cordless Brushless Driver / Hammer Drill is suitable for steel drilling, wood drilling, brick wall drilling, screw fastening, installation work, construction, carpentry, furniture assembly, fabrication, workshop maintenance, and general professional applications.
